Encapsulated AC/DC power supplies

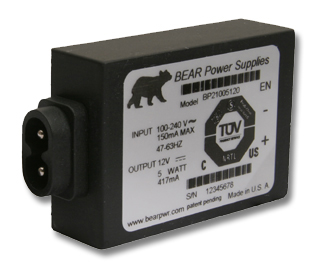

BP2 Series
PCB-mountable with 2-pin mini-IEC input connector

This patented power converter features a 2-pin mini-IEC input connector and detachable line cord. This compact package improves safety - and simplifies your design, testing and certification task- by eliminating exposed high voltage traces from your printed circuit board.

You’ll spend less time designing and testing power circuits. And we’ve made your board and system safer to handle. As with all BEAR power supplies, you get inrush current limiting, EMI filtering, and fusing encapsulated in the module.

The compact, convenient package mounts right on your printed circuit board. Output pins for Enable (remote on/off),  -Vout and +Vout are on the bottom of the package.

The package pins are lead-free and able to withstand wave solder without contaminating lead-free solder lines. All BEAR power supplies are RoHS compliant.

These single-output supplies are available in 5 W, 10 W, 15 W and 30 W models.

Certifications

Certifications for safety and performance, including use in medical instruments, include UL2601-1, UL60950-1, CAN/CSA-C22.2 (No.601.1-M90), CAN/CSA-C22.2 (No.60950-1-03), EN 61000-3, EN 61000-4, EN 60601-1-2, IEC 601-A/A2, and EN 55011. See the certifications page for details.

BP2 Series Power Supplies

Part Number Power Voltage (v) Current (A) Dimensions
(in)
Download drawings * Download data sheet *
BP21005xxx 5 W   1.75 x 2.89 x 0.75  2D outline drawing (PDF)







BP Series operating specifications





BP11005033 3.3 1.52
BP11005050 1.00
BP11005120 12 0.42
BP11005150 15 0.33
BP11005240 24 0.21
BP21010xxx 10 W 1.75 x 3.14 x 0.75 2D outline drawing (PDF)

033 3.3  3.03
050 5 2.00
120 12 0.83
150 15 0.67
240 24 0.42
BP21015xxx  15 W 1.89 x 3.39 x 0.92 2D outline drawing (PDF)

033 3.3  4.55
050 5 3.00
120 12 1.25
150 15 1.00
240 24 0.63
BP21030xxx  30 W 2.50 x 4.14 x 0.92 2D outline drawing (PDF)

033 3.3  9.09
050 5 6.00
120 12 2.50
150 15 2.00
240 24 1.25
480 48 0.625
190203380  2-pin line cord - 18 AWG, 6’ long

2D outline drawing (PDF)

* PDF files require free Adobe Acrobat viewer – download here.

BEAR Power Supplies Operating Specifications



BP Series Voltage - Current Chart

Current (A) Voltage (V) 3.3 5 12 15 24 48
5W supplies  1.52 1.00 0.42 0.33 0.21 NA
10W supplies  3.03 2.00 0.83 0.67 0.42 NA
15W supplies  4.55 3.00 1.25 1.00 0.63 NA
30W supplies  9.09 6.00 2.5 2.00 1.25 0.625



BP Series Operating Specifications

Parameter     Condition Minimum Typical Maximum
Input
Input frequency (Hz)     47   63
Input current (A)
5W output   110/220 VAC   0.1 / 0.06
10W output   110/220 VAC    0.2 / 0.11
15W output  110/220 VAC   0.28 / 0.19
        30W output  110/220 VAC   0.55 / 0.37
Inrush current (A peak)    264 VAC     8
EMI        FCC Class B
Leakage current (A)        500
Input voltage (VAC)    90    264
Output
Hold-up time (ms)  115 VAC full load    10
Output voltage      see voltage-current chart above
Output current     see voltage-current chart above
Output voltage accuracy (%)        +/- 3
Line regulation (%)        +/- 0.5
Noise & ripple (% pk-pk)      0.7  1
Temperature coefficient (%)     +/- 0.1 +/- 0.3
Over-voltage protection (%)   3.3 V output 105 115   140
Over-voltage protection (%)  5 to 48 V output 105 115  130
Overload protection (%)      130
Load regulation (%)  90-264 VAC      +/- 0.5
General
Efficiency (%)      75
Isolation voltage (VDC)    4243
Switching frequency (kHz)
5W and 10W output      100
15W and 30W output      60
Environmental
Humidity (%)    0   95
Operating Temp Range (°C)  Full load  - 40    + 60
Half load  + - 40    70
Storage Temp Range (°C)    - 40    + 85
Cooling      convection




Pricing and Ordering Information
