BP7 Series
DIN Rail mountable

The performance and reliability of BEAR are now available in a convenient DIN rail mountable package. These encapsulated power supplies feature BEAR's unique active  inrush current limiting technology, EMI filter, and fusing right in the module.

Their wide operating temperature range makes them ideal for applications such as industrial automation and process control in harsh environments.

BEAR DIN rail packages have terminal block connections for input and output.

These single-output supplies are available in 5W, 10W, 15W and 30W models. RoHS compliant.

Certifications

Certifications for safety and performance, including use in medical instruments, include UL2601-1, UL60950-1, CAN/CSA-C22.2 (No.601.1-M90), CAN/CSA-C22.2 (No.60950-1-03), EN 61000-3, EN 61000-4, EN 60601-1-2, IEC 601-A/A2, and EN 55011. See the certifications page for details.

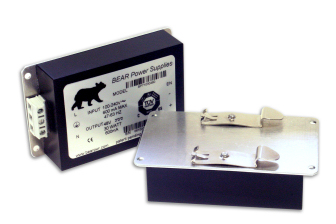

BP7 DIN Rail Power Supply

BP7 Series Power Supplies

Part Number Power Voltage (v) Current (A) Dimensions
(in)
Download drawings * Download data sheet *
BP71005xxx 5 W   1.75 x 3.15 x 0.84 (from base)  2D outline drawing (PDF)







BP Series operating specifications



BP11005033 3.3 1.52
BP11005050 1.00
BP11005120 12 0.42
BP11005150 15 0.33
BP11005240 24 0.21
BP71010xxx 10 W 1.75 x 3.40 x 0.84 (from base)

2D outline drawing (PDF)
033 3.3  3.03
050 5 2.00
120 12 0.83
150 15 0.67
240 24 0.42
BP71015xxx  15 W 1.89 x 3.65 x 1.01 (from base)  2D outline drawing (PDF)
033 3.3  4.55
050 5 3.00
120 12 1.25
150 15 1.00
240 24 0.63
BP71030xxx  30 W 2.50 x 4.15 x 1.01 (from base)  2D outline drawing (PDF)
033 3.3  9.09
050 5 6.00
120 12 2.50
150 15 2.00
240 24 1.25
480 48 0.625

* PDF files require free Adobe Acrobat viewer – download here.

BEAR Power Supplies Operating Specifications



BP Series Voltage - Current Chart

Current (A) Voltage (V) 3.3 5 12 15 24 48
5W supplies  1.52 1.00 0.42 0.33 0.21 NA
10W supplies  3.03 2.00 0.83 0.67 0.42 NA
15W supplies  4.55 3.00 1.25 1.00 0.63 NA
30W supplies  9.09 6.00 2.5 2.00 1.25 0.625



BP Series Operating Specifications

Parameter     Condition Minimum Typical Maximum
Input
Input frequency (Hz)     47   63
Input current (A)
5W output   110/220 VAC   0.1 / 0.06
10W output   110/220 VAC    0.2 / 0.11
15W output  110/220 VAC   0.28 / 0.19
        30W output  110/220 VAC   0.55 / 0.37
Inrush current (A peak)    264 VAC     8
EMI        FCC Class B
Leakage current (A)        500
Input voltage (VAC)    90    264
Output
Hold-up time (ms)  115 VAC full load    10
Output voltage      see voltage-current chart above
Output current     see voltage-current chart above
Output voltage accuracy (%)        +/- 3
Line regulation (%)        +/- 0.5
Noise & ripple (% pk-pk)      0.7  1
Temperature coefficient (%)     +/- 0.1 +/- 0.3
Over-voltage protection (%)   3.3 V output 105 115   140
Over-voltage protection (%)  5 to 48 V output 105 115  130
Overload protection (%)      130
Load regulation (%)  90-264 VAC      +/- 0.5
General
Efficiency (%)      75
Isolation voltage (VDC)    4243
Switching frequency (kHz)
5W and 10W output      100
15W and 30W output      60
Environmental
Humidity (%)    0   95
Operating Temp Range (°C)  Full load  - 40    + 60
Half load  + - 40    70
Storage Temp Range (°C)    - 40    + 85
Cooling      convection
