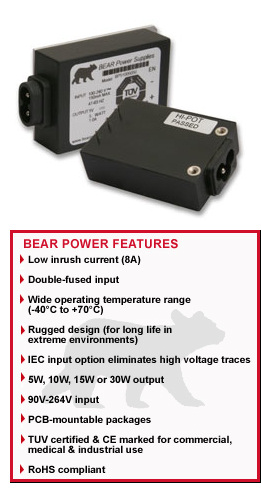

BEAR Power Supplies feature wide operating temperature range, low inrush current, rugged design for long lifeEncapsulated AC/DC Power Supplies

BP Series: Rugged, reliable AC/DC converters

BEAR's BP Series encapsulated AC/DC power supplies are built for performance and long life in commercial, industrial and medical applications. Designed and made in the USA, these rugged and compact modules feature an operating temperature range of -40 to +70°C for reliable operation in harsh environments, for a wide range of applications.

BP Series power supplies incorporate active inrush current limiting, fusing and EMI filtering in one compact module. With these features built in, you need up to 50% less board space for power circuitry and you'll save hours on design and testing. Features such as the remote enable function offer even more convenience to the OEM system designer.

Designed and made in USA.

Mini-IEC input option

Our patented mini-IEC input power modules with detachable line cord (line cord sold separately) eliminate exposed high voltage traces from your printed circuit board. Improve safety and simplify your design, testing and certification tasks. Available in PCB mountable and chassis mountable packages.

Certifications

All BEAR power supplies are TUV certified and CE marked for commercial, medical and industrial use. They are lead-free and RoHS compliant.

Electrical Specifications

View the operating specifications table or choose a model below to see the complete description and specifications for that model.



PCB mountable switching power supplies

Model Input type Output type Power (W) Voltage (v) Features
PCB mountable power supply BP1 3 pins 2 pins 5, 10, 15, 30 3.3, 5, 12, 15, 24, 48* pin- and footprint-compatible with many industry standard packages
2-pin mini IEC power supply BP2 2-pin mini IEC connector 3 pins 5, 10, 15, 30 3.3, 5, 12, 15, 24, 48* Mini-IEC input connector (detachable line cord sold separately)
3-pin mini IEC power supply BP3 3-pin mini IEC connector 3 pins 5, 10, 15, 30 3.3, 5, 12, 15, 24, 48* Mini-IEC input connector (detachable line cord sold separately)

*48V available in 30 W supplies only

Chassis mountable switching power supplies

Model Input type Output type Power (W) Voltage (v) Features
terminal block power supply BP4 Terminal block  Terminal block  5, 10, 15, 30 3.3, 5, 12, 15, 24, 48* perfect for mounting inside NEMA enclosures
2-pin mini IEC terminal block power supply BP5 2-pin mini IEC connector Terminal block 5, 10, 15, 30   3.3, 5, 12, 15, 24, 48* Mini-IEC input connector (detachable line cord sold separately)
3-pin mini IEC terminal block power supply BP6 3-pin mini IEC connector Terminal block 5, 10, 15, 30   3.3, 5, 12, 15, 24, 48* Mini-IEC input connector (detachable line cord sold separately)

*48V available in 30 W supplies only



DIN rail mountable power supplies

Model Input type Output type Power (W) Voltage (v) Features
DIN rail mountable switching power supply BP7 Terminal block  Terminal block  5, 10, 15, 30 3.3, 5, 12, 15, 24, 48* Quick snap-in mounting on standard DIN rails

*48V available in 30 W supplies only



Whether you are starting a new design project or improving an existing product, BEAR Power Supplies' BP Series encapsulated AC/DC converters will simplify your design task. You can be assured of long life and reliability in the most demanding commercial, medical and industrial applications.

Call to order or contact us today if you have any questions.
