BEAR DC/DC Power Supplies FeaturesDC/DC Power Supplies

BPS Series miniature isolated DC/DC converters

Now with output to 300 VDC

BPS Series high-voltage DC-DC converters feature up to five times better efficiency and ten times better load regulation than similar products on the market.

These are configurable 1.5W converters, ideal for powering PIN diodes, APDs and piezoelectric devices.  Applications include RF transcievers, programmable filters, and industrial or scientific instruments.

These high-reliability isolated converters operate from -55°C to +85°C with no heat sink or electrical derating required.

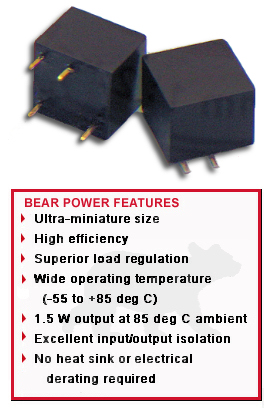

The ultra-miniature encapsulated package is only 0.4" (10.2 mm) tall, with a total 0.1 cubic inches and weight of just 4 grams. Both through-hole and SMT versions are available.

BPS Series converters have a single input voltage (configurable from 3 VDC to 15 VDC) and a single output voltage (configurable from 50 VDC to 300 VDC). They are unregulated; output voltage is directly proportional to input voltage.

See typical characteristics below, or download the data sheet with drawings (347Kb PDF).

BPS series typical characteristics

at 25°C ambient and input voltage at nominal value unless noted
Model BPS0xxyyy* (surface mount)  and BPS1xxyyy* (through-hole)
Input voltage (xx)* Single input, configurable from 3 VDC to 15 VDC
Output voltage (yyy)* Single output, configurable from 50 VDC to 300 VDC
Line regulation   UNREGULATED: output directly proportional to input
Load regulation   3% change from no load to full load
Efficiency   90% typical
Input voltage range +/- 10% of specified input voltage
Output voltage tolerance at full load (nom) Input +/- 3% (tighter tolerance available; please consult factory)
Input/output isolation   100 MΏ minimum at 1000 VDC
Output temperature coefficient   0.02% per degree C for all models
Operating temperature   -55°C to +85°C ambient - no heat sink required
Storage temperature   -55°C to +125°C
Dimensions 0.5 x 0.5 x 0.4 inches (12.7 x 12.7 x 10.2 mm)


We also design and manufacture custom power supplies in open frame, enclosed and encapsulated packages, to your specification.  Contact us or submit an on-line RFQ today!
