Name: BP1 Series | Industry Standard Package
SKU: 784
Availability: InStock

Description

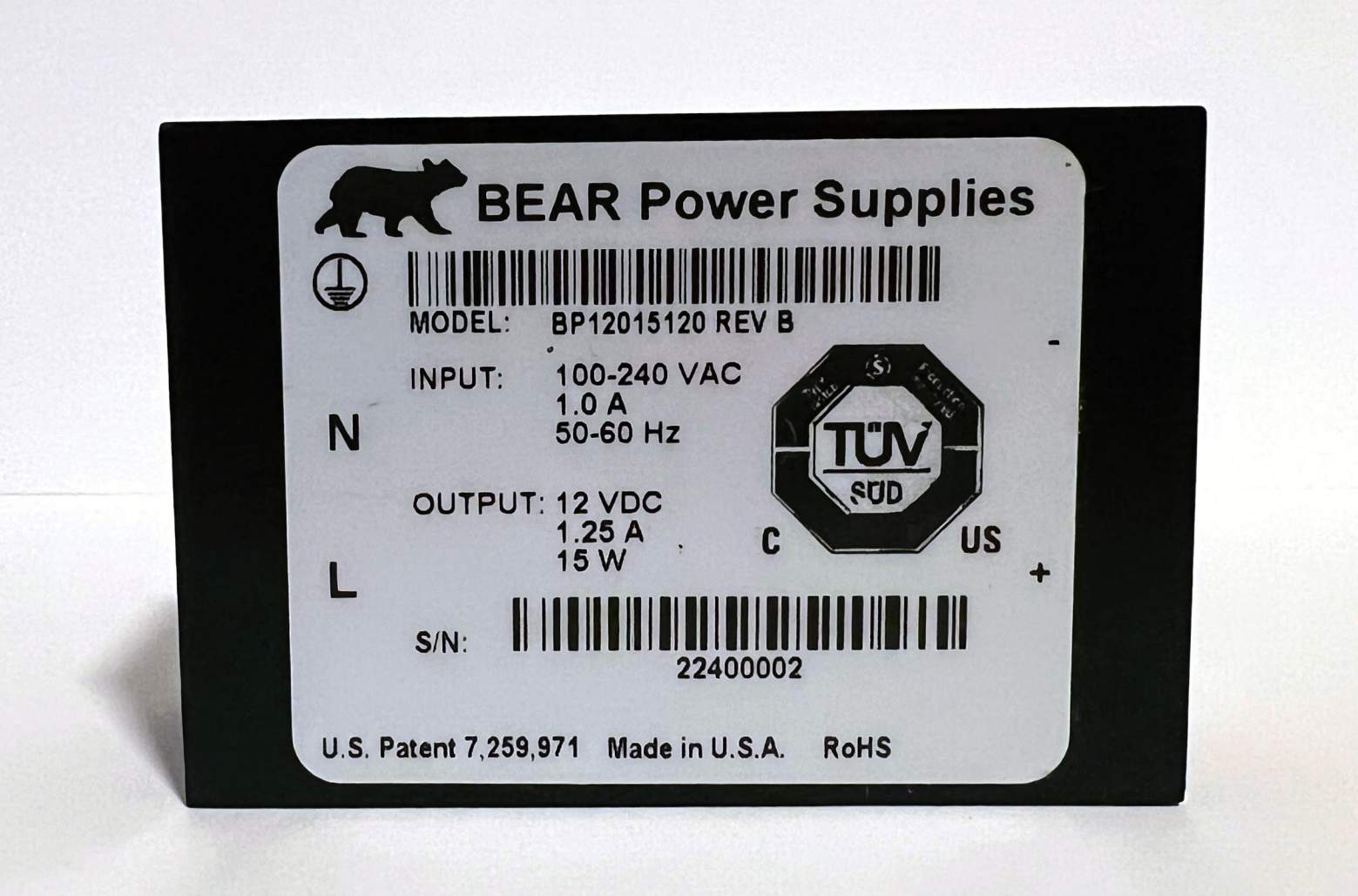

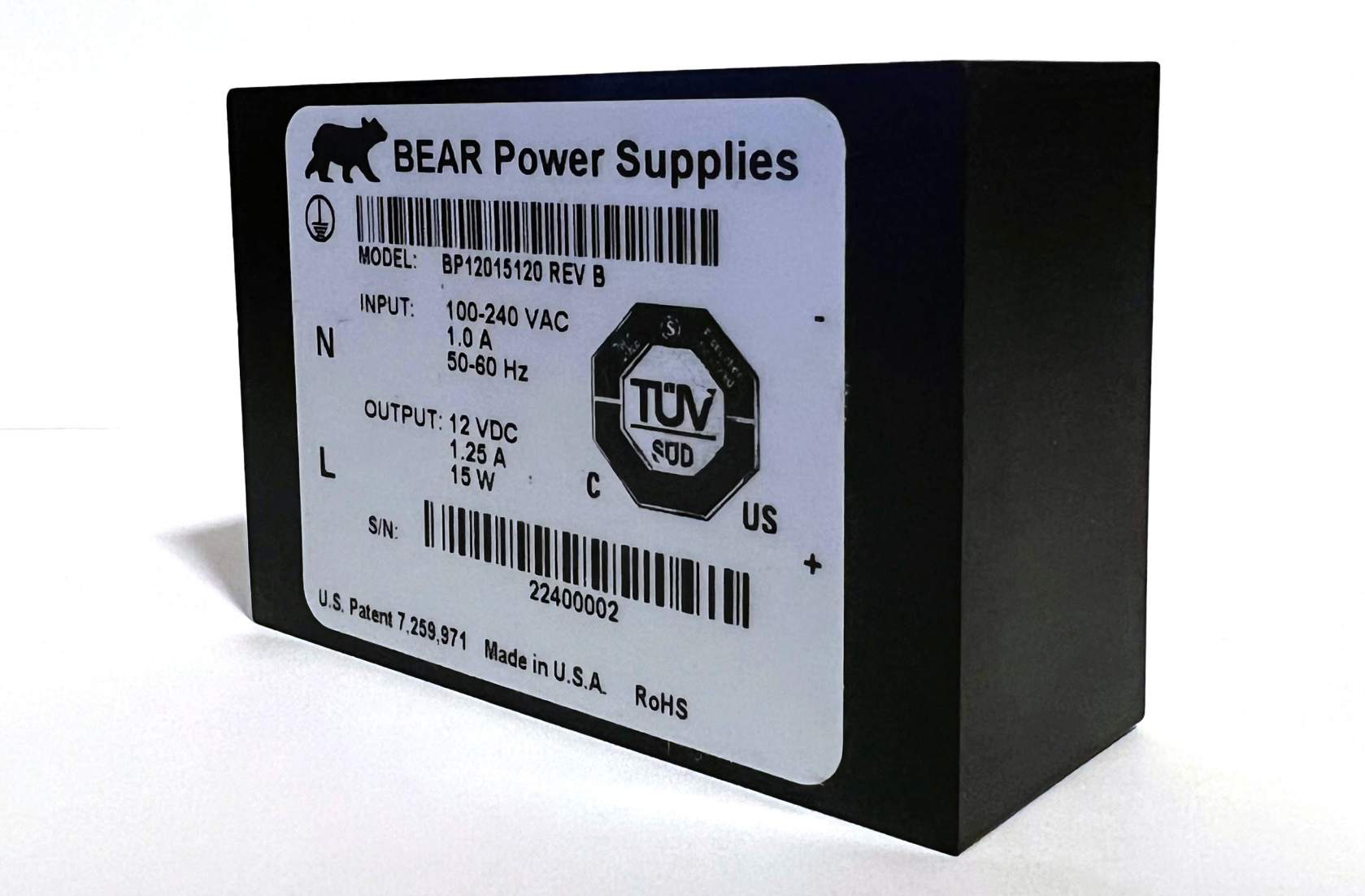

PCB mountable – Industry Standard Package

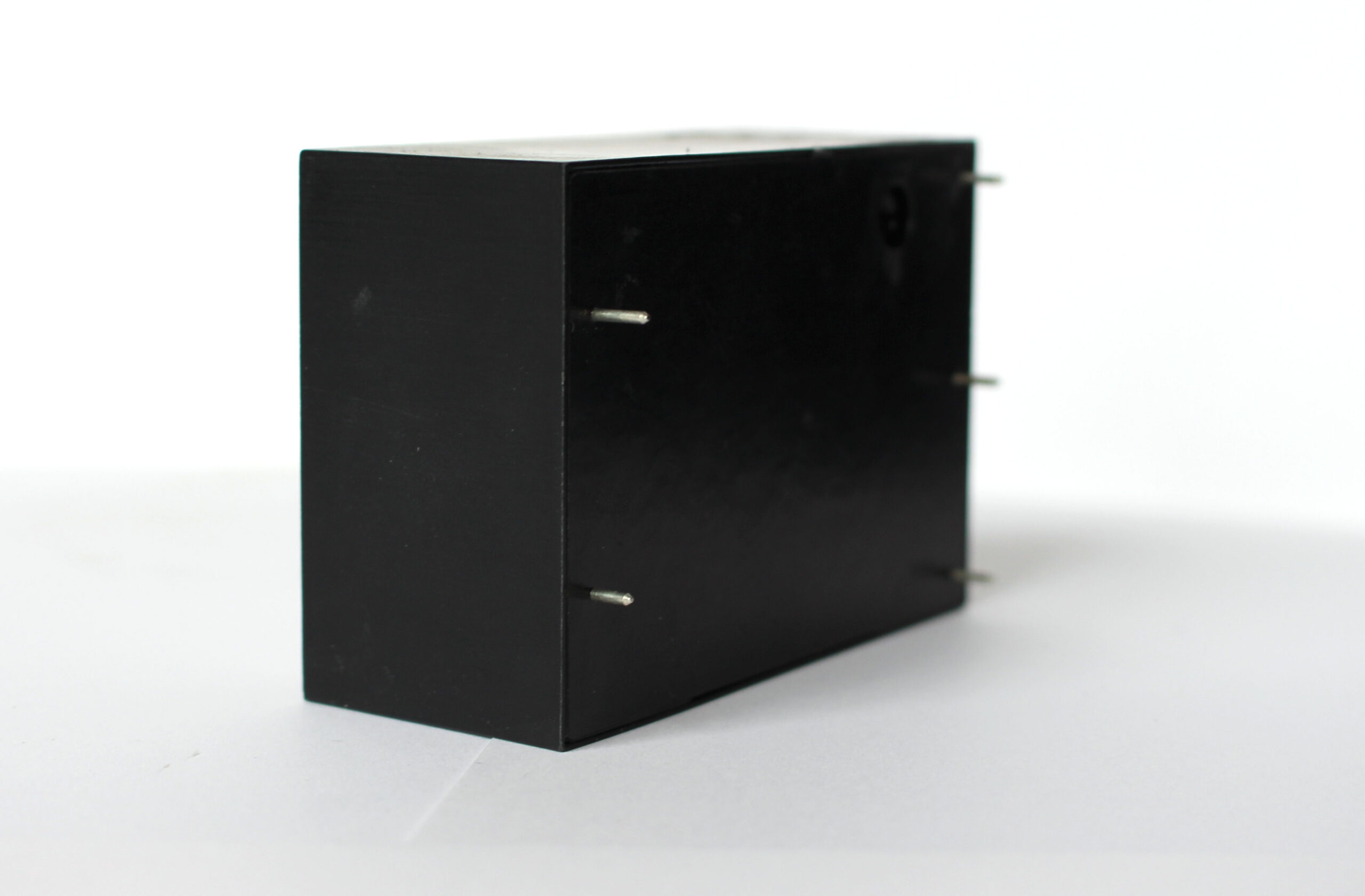

Because the EMI filter is built right in, you can eliminate that module from your design when you use the BP1 power supply from Bear Power Supplies. And of course, you also get our unique inrush current limiting and fusing encapsulated right in the power module. The package pins are lead-free and able to withstand wave solder without contaminating lead-free solder lines. All Bear Power Supplies are RoHS compliant. The 5 W, 10 W and 15 W models have industry standard pinouts. The 30 W model includes an output pin for Enable (remote on/off). See the drawings for pinout configurations.

Additional information

Dimensions	N/A

Specifications

BP Series Voltage – Current Chart


Output Current (A)	Voltage (V)	3.3	5	12	15	24	48
	5W Supplies	1.52	1.00	0.42	0.33	0.21	NA
	10W Supplies	3.03	2.00	0.83	0.67	0.42	NA
	15W Supplies	4.55	3.00	1.25	1.00	0.63	NA
	30W Supplies	9.09	6.00	2.5	2.00	1.25	0.625

BP Series Operating Specifications


Parameter	Condition	Minimum	Typical	Maximum
Input
Input frequency (Hz)		47		63
Input current (A)
5W output	110/220VAC		0.1 / 0.06
10W output	110/220VAC		0.2 / 0.11
15W output	110/220VAC		0.28 / 0.19
30W output	110/220VAC		0.55 / 0.37
Inrush current (A peak)	264VAC			8
EMI				FCC Class B
Leakage current (µA)				500
Input voltage (VAC)		90		264
Output
Hold-up time (ms)	115VAC full load		10
Output voltage			see voltage-current chart above
Output current			see voltage-current chart above
Output voltage accuracy (%)				+/- 3
Line regulation (%)				+/- 0.5
Noise & ripple (% pk-pk)			0.7	1
Temperature coefficient (%)			+/- 0.1	+/- 0.3
Over-voltage protection (%)	3.3V output	105	115	140
Over-voltage protection (%)	5 to 48V output	105	115	130
Overload protection (%)			130
Load regulation (%)	90-264VAC			+/- 0.5
General
Efficiency (%)			75
Isolation voltage (VDC)		4243
Switching frequency (kHz)
5W and 10W output			100
15W and 30W output			60
Environmental
Humidity (%)		0		95
Operating Temp Range (°C)	Full load	- 40		+ 60
Half load +	- 40		70	Half load +
Storage Temp Range (°C)		- 40		+ 85
Cooling			convection

Certifications

Certifications for safety and performance, including use in medical instruments, include UL2601-1, UL60950-1, CAN/CSA-C22.2 (No.601.1-M90), CAN/CSA-C22.2 (No.60950-1-03), EN 61000-3, EN 61000-4, EN 60601-1-2, IEC 601-A/A2, and EN 55011. Click to see more.
