BP7 Series

$205.00 – $240.00

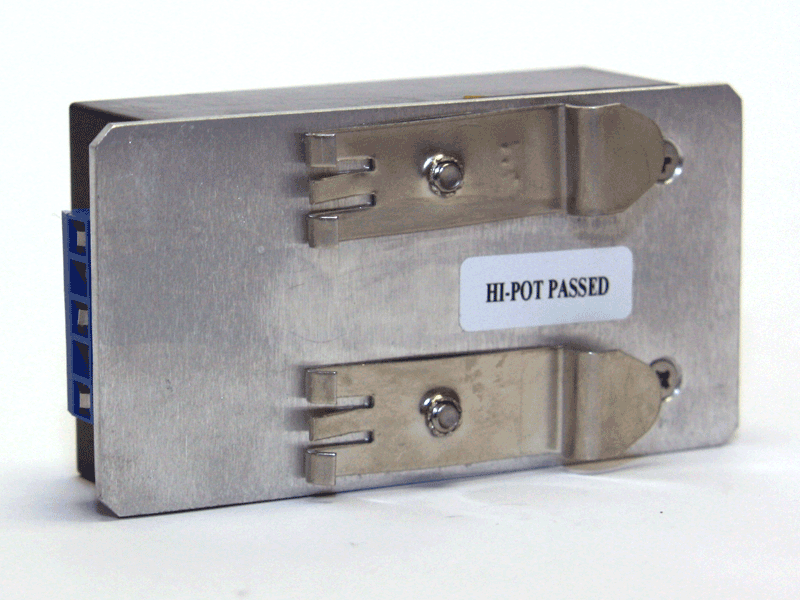

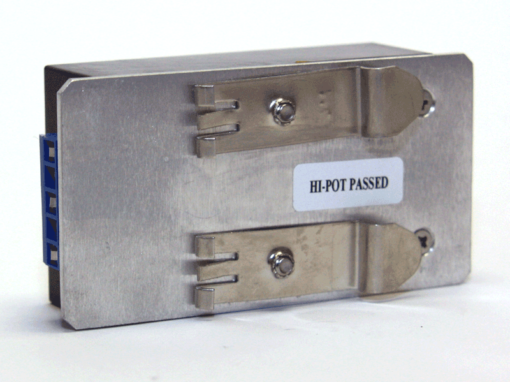

Quick snap-in mounting on standard DIN rails
Leadtime: stock to 12 weeks
Contact sales@zaxis.net for volume pricing over 25 pieces.

SKU: N/A Categories: ,

Description

DIN Rail Mountable

The performance and reliability of Bear Power Supplies are now available in a convenient DIN rail mountable package. These encapsulated power supplies feature Bear Power Supplies unique active inrush current limiting technology, EMI filter, and fusing right in the module.

Their wide operating temperature range makes them ideal for applications such as industrial automation and process control in harsh environments.

Bear Power Supplies DIN rail packages have terminal block connections for input and output.

These single-output supplies are available in 5W, 10W, 15W and 30W models. All Bear Power Supplies are RoHS compliant.

Additional information

Dimensions N/A

Specifications

BP7 Series Voltage – Current Chart

WP DataTables



BP Series Operating Specifications

WP DataTables

Certifications

WP DataTables

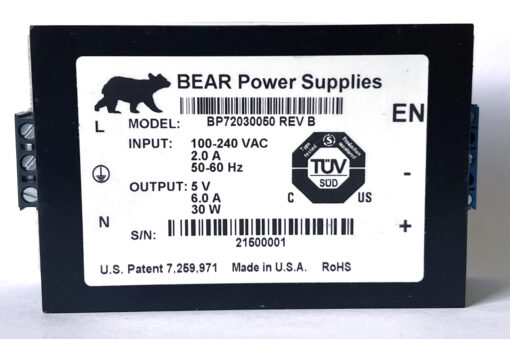

Enable Function

Most BP Series power converters feature an Enable pin that can be used to turn the convertor on (open) or off (shorted to the “_” terminal).

This unique feature allows you to mount the power supply at the rear of the system chassis, near the AC line input, and control it from an ON/OFF switch on your system’s front panel without talking the primary AC power to the front panel. The Enable pin is referenced to the output negative terminal(labeled “_”) and is thus isolated from the primary.
When left open, the Enable pin typically floats at about +4.6V. The input impedance for this node is greater than 10KΩ.
